Key information:

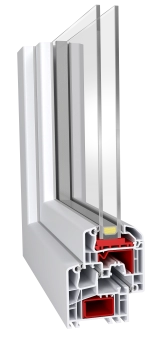

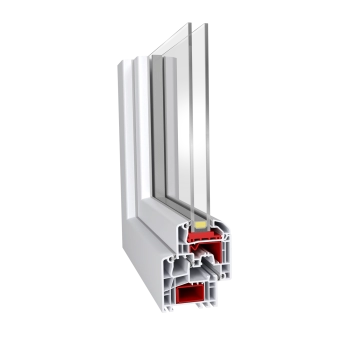

A 5-chamber system with a 70 mm installation depth, equipped with a triple seal (2 external seals, 1 central seal) and capable of integrating glazing units uto 42 mm thick
Characteristics and use:
The classic IDEAL 5000 configuration with a central seal significantly increases the thermal and acoustic parameters of windows.
The triple seal system not only guarantees higher airtightness, but also extends the durability of the fitting components, protecting them from the effects of weather conditions in the so-called dry chamber.
The special extruded central rebate located on the frame, to which the internal seal adheres, guarantees better tightness of the structure, as well as makes it difficult to force the sash open, limiting the possibility of getting to the fittings.
Additional information:
- Uf 1.2 W/m2K
- profile class: B
- Profile core matched to the colour of decorative foils. (three core colours available: white, brown, anthracite)
- Grey or black seals (colour depends on the choice of window colour)
- Possibility of using various types of glass: ornamental, safe, anti-burglary, sun protection, acoustic
- Possibility of using fittings, anti-burglary catches, in RC1 and RC2 class
- Wide range of decorative foils
Product features
- installation depth 70 mm
- 2 anti-theft points per wing
- glazing with packages uto 42 mm wide (standard insert 24 mm * 4/16/4)
- available core colors: white, brown, anthracite
Colors
NOTE: The color reproduction shown below may differ from the appearance of the veneer in reality . To determine the actual appearance of the veneer, please use the decorative film sample template ALUPLAST.
